Customise Hekate Theme

Guide Information

Customise the Hekate theme inside Hekate’s GUI (Nyx).

  • 20+ Minutes

What You Need

  • Any Switch With CFW
  • Hekate Bootloader Folder & Payload
  • MicroSD Card (64GB+)
  • A Background Image

Change Theme Colour

You can change the theme colour for Hekate’s GUI (Nyx) on the Hekate home screen.

  1. Make sure you have the Hekate bootloader folder on the root of your microSD card, and the corresponding hekate_ctcaer_x.x.x.bin payload. If you don’t have them click the link below and extract the hekate_ctcaer_x.x.x_Nyx_x.x.x.zip to the root of your microSD card.
Click To Download
Click To Download
Set Up CFW Files 2
Extract Hekate 1
Extract Hekate 2
Extract Hekate 3
Extract Hekate 4
Extract Hekate 5
Extract Hekate 6
Set Up CFW Files 2
Extract Hekate 1
Extract Hekate 2
Extract Hekate 3
Extract Hekate 4
Extract Hekate 5
Extract Hekate 6
  1. Insert your microSD card into your Switch > put your Switch into RCM > inject the hekate_ctcaer_x.x.x.bin to boot into Hekate.
  1. Set the Time/Date.
Set Up Atmosphere 52
Set Up Atmosphere 53
Set Up Atmosphere 54
Set Up Atmosphere 52
Set Up Atmosphere 53
Set Up Atmosphere 54
  1. Select Nyx Settings > Color Theme > select the colour > Save & Reload.
Custom Hekate 1
Custom Hekate 2
Custom Hekate 3
Custom Hekate 4
Custom Hekate 5
Custom Hekate 1
Custom Hekate 2
Custom Hekate 3
Custom Hekate 4
Custom Hekate 5

Landing Screen

You can select what screen shows when you first boot into Hekate.

  1. On the Hekate home screen, select Nyx Settings > Home Screen and choose from the options in the drop down menu > Save Options > OK > Close.
Custom Hekate 6
Custom Hekate 7
Custom Hekate 8
Custom Hekate 9
Custom Hekate 10
Custom Hekate 11
Custom Hekate 12
Custom Hekate 6
Custom Hekate 7
Custom Hekate 8
Custom Hekate 9
Custom Hekate 10
Custom Hekate 11
Custom Hekate 12

Custom Background

You can use a custom background image in some screens in Hekate.

  1. Design or choose a picture for your custom background image.
  1. Visit the website below to format your image.
Click To View
Click To View
  1. Upload your image.
Custom Hekate 14
Custom Hekate 15
Custom Hekate 16
Custom Hekate 17
Custom Hekate 14
Custom Hekate 15
Custom Hekate 16
Custom Hekate 17
  1. Scroll down to the ‘Color:’ dropdown menu and select: 32 (True color, RGBA).
Custom Hekate 18
Custom Hekate 19
Custom Hekate 20
Custom Hekate 18
Custom Hekate 19
Custom Hekate 20
  1. Under the Resize section, change the dimensions to: 1280×720.
  1. Scroll up, under Status, and click on Download (your image name) to download the converted image.

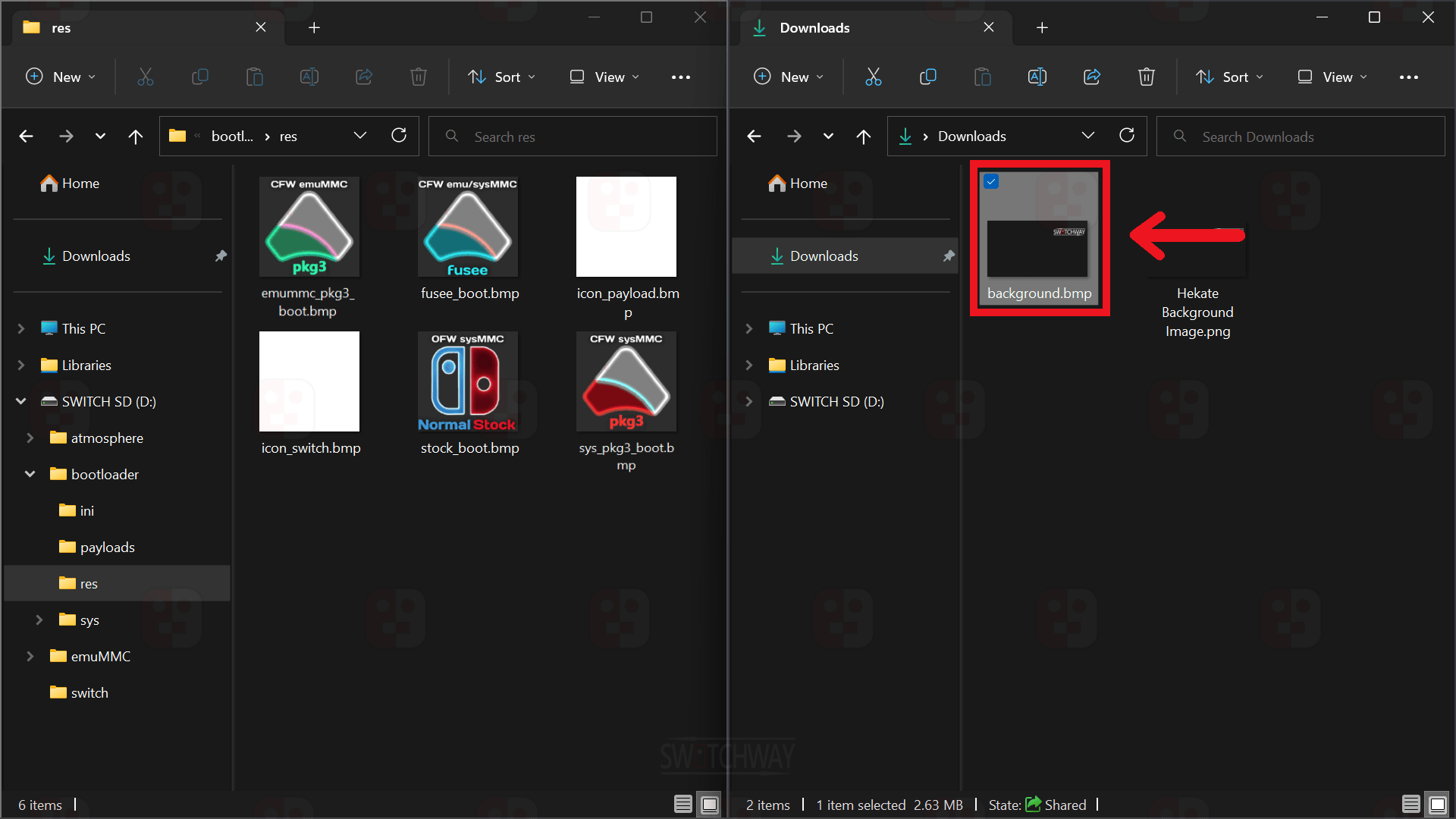

  1. Rename it to background.bmp.
Custom Hekate 23
Custom Hekate 24
Custom Hekate 25
Custom Hekate 23
Custom Hekate 24
Custom Hekate 25

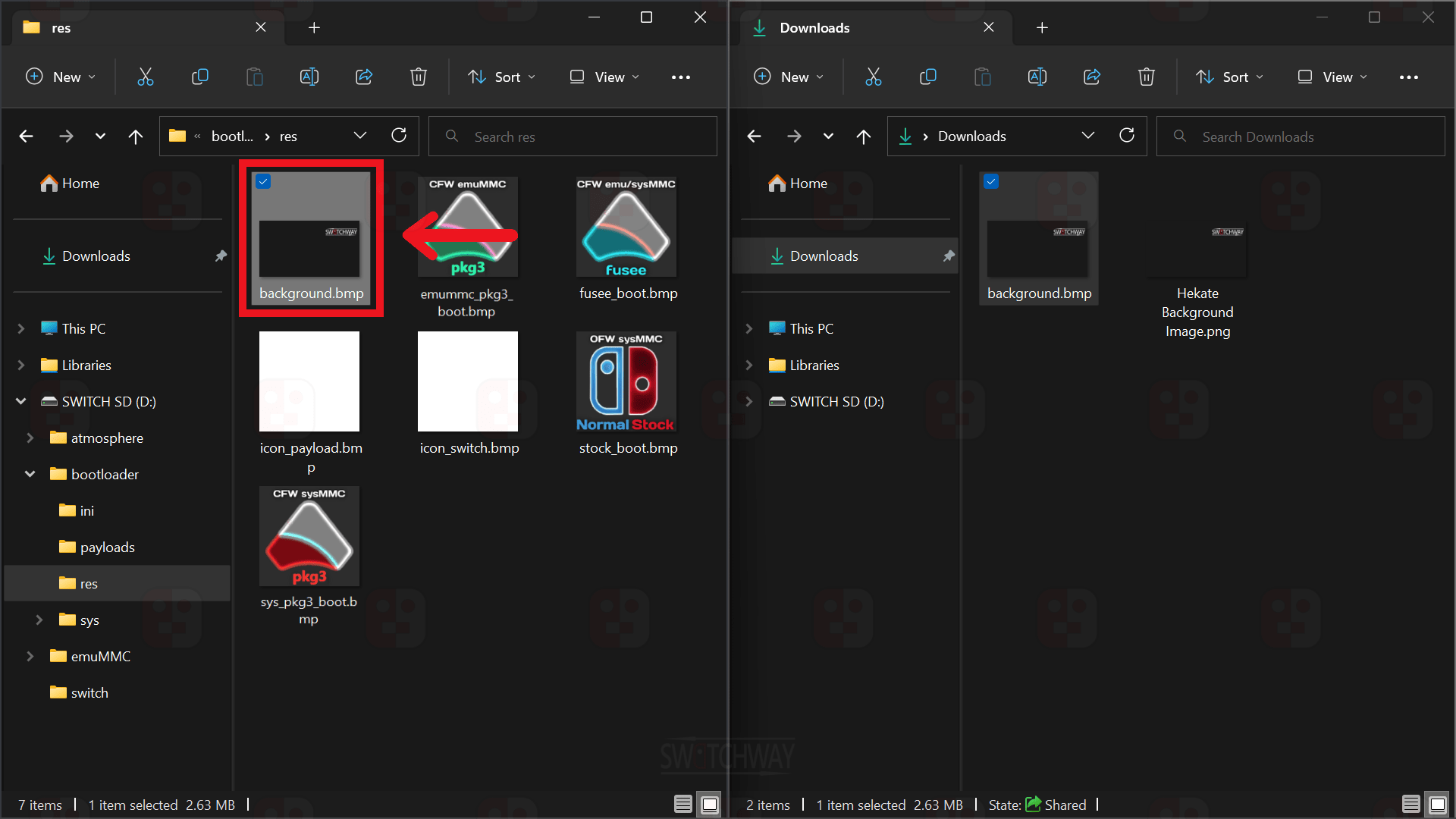

  1. Copy the background.bmp to the bootloader/res folder on your microSD card.
Custom Hekate 26
Custom Hekate 27
Custom Hekate 26
Custom Hekate 27
  1. Your custom background image will be displayed when you boot into Hekate.
