Inject Payloads

Guide Information

How to put your Switch into recovery mode and inject payloads, or boot using a Switch with a modchip.

  • 10+ Minutes

What You Need

  • Unpatched/Modchipped Switch
  • MicroSD Card (64GB+)
  • A Device To Inject, Or Modchip
  • USB Cable (Unpatched)

Getting Started

  1. Make sure you have the Hekate bootloader folder on the root of your microSD card, and the corresponding hekate_ctcaer_x.x.x.bin payload. If you don’t have them click the link below and extract the hekate_ctcaer_x.x.x_Nyx_x.x.x.zip to the root of your microSD card.
Click To Download
Click To Download
Set Up CFW Files 2
Extract Hekate 1
Extract Hekate 2
Extract Hekate 3
Extract Hekate 4
Extract Hekate 5
Extract Hekate 6
Set Up CFW Files 2
Extract Hekate 1
Extract Hekate 2
Extract Hekate 3
Extract Hekate 4
Extract Hekate 5
Extract Hekate 6
  1. Copy the hekate_ctcaer_x.x.x.bin to your desktop (MacOS/Linux, RCM Loader and Windows only).
Extract Hekate 7
Extract Hekate 8
Extract Hekate 7
Extract Hekate 8
  1. Insert your microSD card into your Switch unless you have a modchip fitted or are using the SX Pro.

Entering Recovery Mode

  • Unpatched Switch only.
  1. Remove the right joy-con and insert the jig, and push it all the way down into the bottom of the joy-con rail.
Set Up Atmosphere 35
Set Up Atmosphere 36
Set Up Atmosphere 37
Set Up Atmosphere 35
Set Up Atmosphere 36
Set Up Atmosphere 37
  1. Press and hold the Volume + button for 2 seconds, continue to hold, tap the Power button then let go of both buttons. Your screen should remain black and your Switch will be in RCM.
Set Up Atmosphere 38
Set Up Atmosphere 39
Set Up Atmosphere 40
Set Up Atmosphere 41
Set Up Atmosphere 38
Set Up Atmosphere 39
Set Up Atmosphere 40
Set Up Atmosphere 41
  1. Remove the jig and reconnect the right joy-con.
Set Up Atmosphere 42
Set Up Atmosphere 43
Set Up Atmosphere 42
Set Up Atmosphere 43

Your Device

Choose a device/operating system from the options below to jump to that device/injection method:

Android

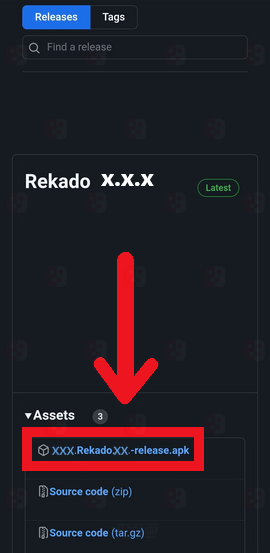

  1. Download the software from the link below.
Click To Download
Click To Download
  1. Install Rekado on your device and open it.
Inject Payloads 2
Inject Payloads 3
Inject Payloads 4
Inject Payloads 5
Inject Payloads 6
Inject Payloads 2
Inject Payloads 3
Inject Payloads 4
Inject Payloads 5
Inject Payloads 6
  1. In the Payloads category, click the + button to select a preloaded payload (hekate_ctcaer_x.x.x.bin) from your device’s storage. Or simply transfer your payload (hekate_ctcaer_x.x.x.bin) to the Rekado folder in the device’s memory.
Inject Payloads 7
Inject Payloads 8
Inject Payloads 7
Inject Payloads 8
  1. Connect your Switch to your device using a USB cable (allow permission for USB access if necessary), then inject the latest Hekate payload (hekate_ctcaer_x.x.x.bin).
Set Up Atmosphere 44
Inject Payloads 9
Inject Payloads 10
Set Up Atmosphere 44
Inject Payloads 9
Inject Payloads 10
  1. Your Switch will boot into Hekate (or any other payload you inject).
  1. Remove the USB cable.

MacOS & Linux

  • Use the Chrome web browser.
  1. Connect your Switch to your PC using a USB cable.
  1. Click the link below and use the website to inject the hekate_ctcaer_x.x.x.bin.
Click To View
Click To View
  1. Click Choose file and select the hekate_ctcaer_x.x.x.bin on your desktop.
Inject Payloads 11
Inject Payloads 12
Inject Payloads 13
Inject Payloads 11
Inject Payloads 12
Inject Payloads 13
  1. Once the hekate_ctcaer_x.x.x.bin has been uploaded to the website click Do the thing!.
Inject Payloads 14
Inject Payloads 15
Inject Payloads 14
Inject Payloads 15
  1. Select APX > Connect and the website will inject the payload.
Inject Payloads 16
Inject Payloads 17
Inject Payloads 18
Inject Payloads 16
Inject Payloads 17
Inject Payloads 18
  1. Your Switch will boot into Hekate (or any other payload you inject).
  1. Remove the USB cable.

RCM Loader

  1. Copy the hekate_ctcaer_x.x.x.bin on your desktop to the ATMOSPHERE folder on your RCM Loader.
Inject Payloads 19
Inject Payloads 20
Inject Payloads 19
Inject Payloads 20
  1. Delete the existing payload.bin that’s already there and rename the hekate_ctcaer_x.x.x.bin to payload.bin.
Inject Payloads 21
Inject Payloads 22
Inject Payloads 23
Inject Payloads 21
Inject Payloads 22
Inject Payloads 23
  1. Open the LAUNCH.TXT and check the text shows as: \ATMOSPHERE\PAYLOAD.BIN.
Inject Payloads 24
Inject Payloads 25a
Inject Payloads 24
Inject Payloads 25a
  1. Insert the RCM Loader into your Switch.
  1. Your Switch will boot into Hekate (or any other payload you inject).
  1. Remove the RCM Loader.

Switch With Modchip

  1. Rename the hekate_ctcaer_x.x.x.bin on the root of your microSD card to payload.bin (all modchips regardless of firmware).

Inject Payloads 27
Inject Payloads 28
Inject Payloads 29
Inject Payloads 27
Inject Payloads 28
Inject Payloads 29
    • If your modchip is not flashed with Spacecraft-NX or HWFLY-NX you will need to download the SX_Gear_v1.1.zip from the link below and extract it to the root of your microSD card as well.
Click To Download
Click To Download
Inject Payloads 30
Inject Payloads 31
Inject Payloads 32
Inject Payloads 33
Inject Payloads 34
Inject Payloads 35
Inject Payloads 30
Inject Payloads 31
Inject Payloads 32
Inject Payloads 33
Inject Payloads 34
Inject Payloads 35
  1. Insert your microSD card into your Switch.
  1. Power on.
  1. Your Switch will boot into Hekate.

SX Pro

  1. Rename the hekate_ctcaer_x.x.x.bin on the root of your microSD card to payload.bin (all modchips regardless of firmware).

Inject Payloads 27
Inject Payloads 28
Inject Payloads 29
Inject Payloads 27
Inject Payloads 28
Inject Payloads 29
  1. Download the software from the link below.
Click To Download
Click To Download
  1. Extract the SX_Gear_v1.1.zip to the root of your microSD card. Replace any files if asked.
Inject Payloads 30
Inject Payloads 31
Inject Payloads 32
Inject Payloads 33
Inject Payloads 34
Inject Payloads 35
Inject Payloads 30
Inject Payloads 31
Inject Payloads 32
Inject Payloads 33
Inject Payloads 34
Inject Payloads 35
  1. Insert your microSD card into your Switch.
  1. Insert the SX Pro.
  1. Your Switch will boot into Hekate.
  1. Remove the SX Pro.

Windows

  1. Download the software from the link below.
Click To Download
Click To Download
Set Up Atmosphere 24a
Check Possibly Patched 0
Set Up Atmosphere 24a
Check Possibly Patched 0
  1. Open the TegraRcmGUI_vx.x_portable.zip and copy the TegraRcmGUI_vx.x_portable folder to your desktop. Open it and run TegraRcmGUI.exe.
Inject Payloads 37
Inject Payloads 38
Inject Payloads 39
Inject Payloads 40
Inject Payloads 37
Inject Payloads 38
Inject Payloads 39
Inject Payloads 40
  1. Go to Settings > Install Driver > follow the installer instructions to install the APX Device Driver. Click the Payload tab once it’s installed.
Inject Payloads 41
Inject Payloads 42
Inject Payloads 43
Inject Payloads 44
Inject Payloads 45
Inject Payloads 46
Inject Payloads 41
Inject Payloads 42
Inject Payloads 43
Inject Payloads 44
Inject Payloads 45
Inject Payloads 46
  1. Connect your Switch to your PC using a USB cable, you will see RCM O.K in TegraRcmGUI.
Set Up Atmosphere 44
Inject Payloads 47
Set Up Atmosphere 44
Inject Payloads 47
  1. Click the folder icon in TegraRcmGUI and select the hekate_ctcaer_x.x.x.bin file on your desktop, then click on Inject Payload.
Inject Payloads 48
Inject Payloads 49
Inject Payloads 50
Inject Payloads 51
Inject Payloads 52
Inject Payloads 53
Inject Payloads 48
Inject Payloads 49
Inject Payloads 50
Inject Payloads 51
Inject Payloads 52
Inject Payloads 53
  1. Your Switch will boot into Hekate (or any other payload you inject).
  1. Remove the USB cable and close TegraRcmGUI.
